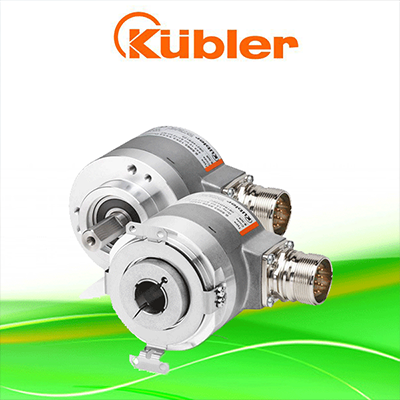

Incremental and absolute
- Shaft and hollow shaft variants
- Size ranging from miniature Ø 24 mm to maxi Ø 100 mm
- Optical and magnetic sensing
- Wide operating temperature range and high protection class
- Standard, fieldbus, Industrial Ethernet interfaces

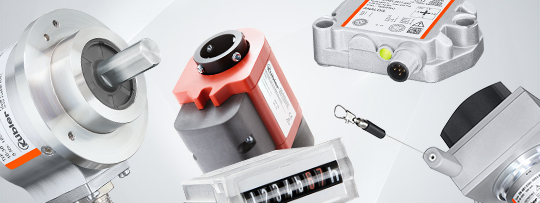

Measurement
Rotary speed and position detection, linear position and speed measurement as well as inclination angle detection.

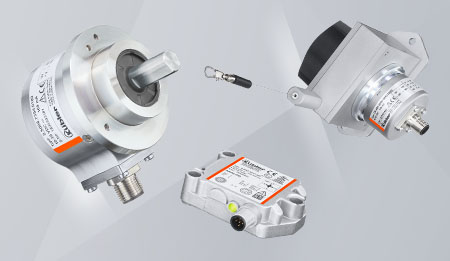

- Encoders
- Bearingless encoders
- Motor feedback systems
- Linear measuring systems
- Shaft copying systems
- Inclinometers
Radar sensors
Industrial radar sensors based on the latest radar technology.
Whether sensor or sensor system solution, Kübler offers a wide range of
options for the most diverse measuring tasks in the most diverse applications
from all industrial sectors. With a measuring rate of up to 500 Hz and
accuracies of up to ±1µm, measurement is not only fast but also with
unprecedented precision; a small blind range of just 0.15 m for use at close
range of the sensor is an outstanding feature, as is the very narrow aperture
angle of just ±1.5° for very precise and focused measurement. Suitable
accessories and software tools ensure user-friendly installation and
configuration.
Bearingless encoders
Reliable speed measuring with magnetic sensor solution.
Bearingless encoders are the perfect alternative to bearing mounted encoders,
due to their compact design and easy mounting options on almost any shaft
diameter. Bearingless encoders from Kübler are already used today in drive and
elevator technology, for asynchronous motors or external rotor motors, or in
generators, large motors, and wind turbines.
Our smart technology is available for the highest signal quality. Digital real-time
signal processing compensates for possible signal errors and optimizes drive
control.
Solutions for elevator technology
High level of reliability and optimal driving comfort with encoders and shaft copy systems.
Elevators are among the safest means of transport in the world. Over one billion people trust this technology to quickly and, above all, safely reach their destination comfortably. Sensors play an important role here. Drive and control manufacturers and elevator builders have been using Kübler products for years. Encoders and bearingless encoders for optimally controlling the drive as well as shaft copy systems for absolute positioning of the elevator car are in use around the world in countless elevators. So you too can trust our sensors and our many years of experience.
Motor Feedback Systems for servo motors
A constant dimension of 36.5 mm means enormous benefits for you.
With requirements from industry and many years of experience in drive technology,
Kübler presents its new product family of Motor Feedback Systems. Kübler has
developed its Motor Feedback Systems in close cooperation with prominent
manufacturers of servo motors and converters. They are based on a unique platform
that offers a multitude of possibilities and benefits for servo motors. From the
reduction in number of motor variants and the standardization of the mechanical
connection between encoder and drive to cost savings along the entire value chain.
You also get maximum flexibility when selecting the electrical interfaces.
More space for your system concepts: space-saving all-in-one solution with maximum power density.

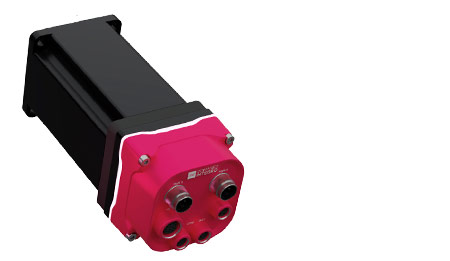

Integrated servomotors – Synapticon by Kübler
Space, time and costs are decisive factors in modern automation. The new servomotors with integrated drive control offer high power density in a compact design and therefore enable more efficient machine concepts.
This solution is suitable for numerous applications – from automation to intralogistics and across a wide performance spectrum. Thanks to the innovative thermal concept, motor derating remains virtually zero – more power without energy losses.
Actilink-S: integrated servomotor
- From 200W to 1000W
- Torque from 0.65 Nm to 3.2 Nm
- With or without brake
- Interfaces: EtherCAT, PROFINET, EtherNet/IP and in future CAN and other secure Ethernet protocols
- Safety functions: STO, SBC.
